2D Analysis Software

Product serial number
1
Product description
Parameters
Video
Down download

The program interface combines typical work steps in clearly designed dialogs so that the user can evaluate both series tests and special tests quickly, reproducibly and accurately.

The FalCon MovXact module allows you to precisely analyze image sequences with the methods of 2D image measurement technology. In addition to robust, automatic marker tracking, task-specific calibration and processing of measurement results is supported. Measurement graphs and individual measurement values are displayed to fit the image data precisely, are shown numerically, and are written to standardized file formats.



Geometric measuring and tracking has never been that easy!

Components

Management of test data
Several views of a test or several films of a test series within one analysis session
Import/export of picture and measurement data (standardized file formats)
Settings and layout from registry
Individual defaults for markers and calibration
Compact data saving and text log



Automatic measuring and marker tracking

Supported marker types:
MXT MarkerXtrackT (5-point markers)
DOT (1-point markers),
QUAD (quadrant markers)
CODE (coded markers of type 'AICON')
COR (any image pattern)
PIX (coordinate measurements)
Parallel procedure with sophisticated combination of the methods
Easy set-up of markers (auto-centering)
Group model for dropout handling
Measuring of virtual points



Calibration of measurement data

Distortion correction according to camera and lens
2D reference planes: coordinate system and scale
Depth correction
Frame rate and T0

Interactive image management

Measurement of points, distances, angles and areas
Assessment of outlines (contours = f(t))
Measuring by planar stencils



Representation of measurement data in a picture or diagram

Overlay graphics from picture measurement data
Analysis-picture and movie representation
Precise measurement zoom window with flexible configuration

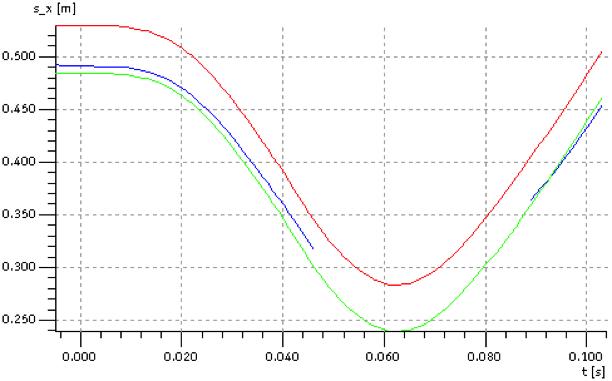

Quick Look of locus diagrams (x-y) and time functions (a-v-d)
Easy export of images and diagrams to the clipboard



Processing of measurement data

Extraction of additional variables, e.g. resultant, angle, and MXT angle
differential measurement with respect to time or space
ISO/SAE time domain filters and differentiation (a-v)
Export of the data into ISO, DIAdem® or ASCII file format
