FalCon FrameMerge

The Tool for Merging and Comparing Multiple Image Sequences
Product serial number
1
Product description
Parameters
Video
Down download

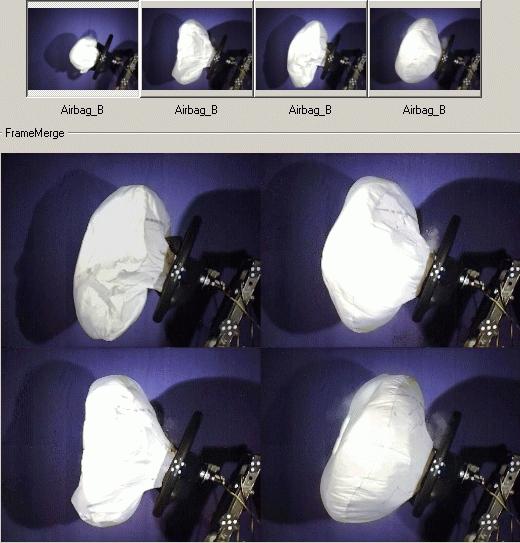

 The module FrameMerge offers the comparison of several video sequences by image superposition/overlay or bysplitscreen/mosaic.

Create descriptive result movies for documentation or representation.



The features of the module are designed acc. to the problems in the crash-test section:

Recordings from different cameras with varying lenses and possibly variable view cut-outs are to be combined precisely aligned. The objects often cannot be configured with respect to their color and the environment is mostly fixed, therefore only small differences between congruent images can be expected.



The user guidance is analogous to the known FalCon etra modules:

A clearly laid out working window integrates all necessary steps. Preview and thumbnail images enable an easy visual assessment and show you the result of the merging process. All inputs and settings can be saved as a document; template files allow a quick repetition of a following test.



Express your test by multiple videos!

Input
Several channels (number not restricted) = temporal sequences of frames (raw image data or standard file formats) or AVI videos
Per each channel:
time mapping, picture post-processing, rectification, section, zoom
(see Picture Transformation in FalCon QuickView)



Assemble = Merge

Overlay transparency adjustable per each channel
Free positioning of the channels in order to compensate different camera positions:
translation, rotation, zoom and flipping.
Automatic positioning of the channels via reference markers
(= steadiness control between the channels)
Superposition / overlay modes to choose from:
Sum, difference, minimum, maximum, pseudo-color
Split-screen / mosaic up to 3x3 raster

Output

Visual assessment in the working window
Standard image file formats BMP, TIF, JPG
AVI videos (uncompressed/compressed)
